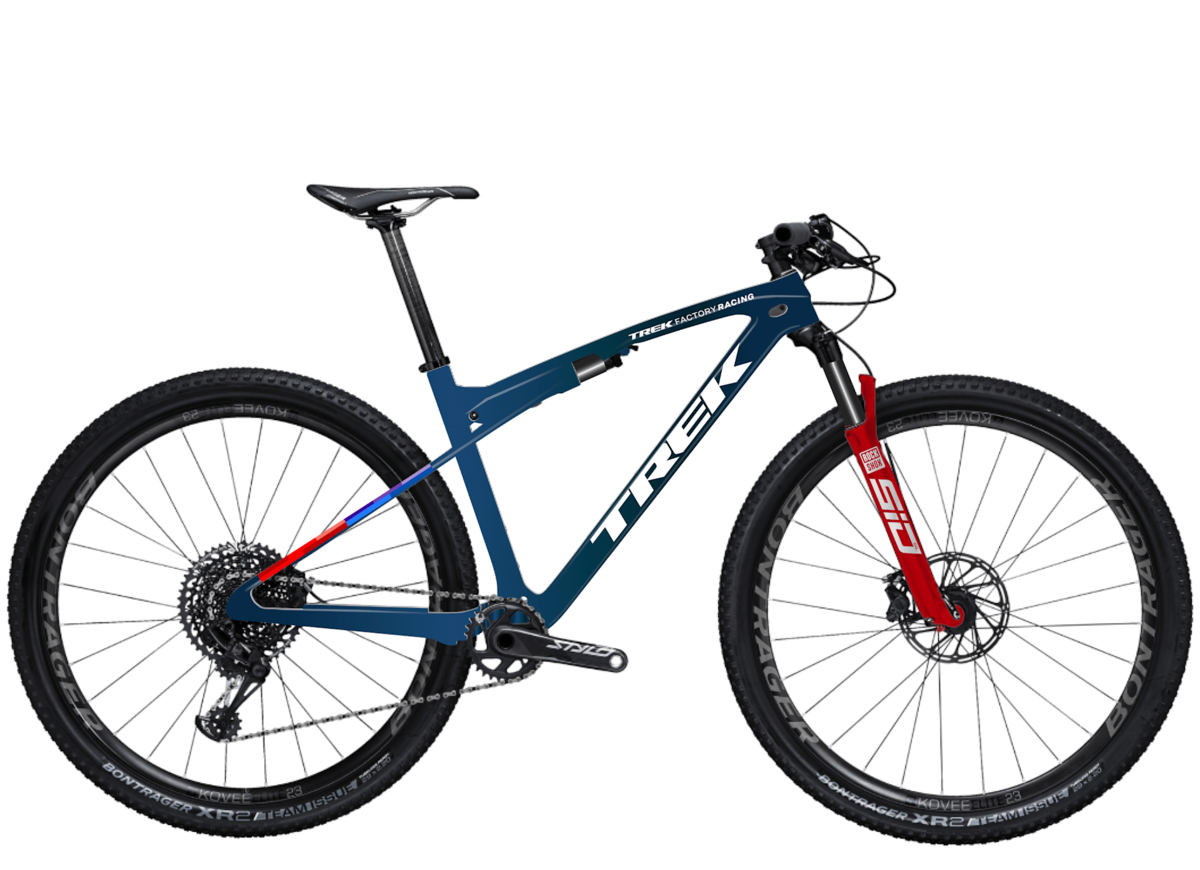

Trek Supercaliber SLR 9.8 X0 AXS T-Type Gen 2
This item is currently not available.
Details
Supercaliber SLR 9.8 X0 AXS is an ultralight XC mountain bike that's built with the top components for race day. Its SLR Mountain Carbon frame is as light as it is meticulous, with a high modulus layup that gives you all the stiffness you crave and none of the weight. XC courses get rowdier every year, so it's equipped with a 110mm fork and 80mm of IsoStrut rear suspension to smooth your roll without dropping pedaling efficiency. It's all topped off with carbon wheels, a carbon cockpit, and SRAM's wireless direct-mount X0 transmission.
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
| Frame size | Small | Medium | Medium/Large | Large | X-Large |
|---|---|---|---|---|---|
| Wheel size | 29" | 29" | 29" | 29" | 29" |
| Seat tube (cm) | 39.5 | 42 | 44 | 46 | 52.5 |
| Seat tube angle | 70.5° | 71.0° | 71.0° | 71.5° | 71.5° |
| Effective seat tube angle | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| Head tube length (cm) | 9 | 9 | 9 | 10 | 12.5 |
| Head angle | 67.5° | 67.5° | 67.5° | 67.5° | 67.5° |
| Effective top tube (cm) | 57.1 | 59.2 | 60.5 | 62.2 | 66.3 |
| Bottom bracket height (cm) | 32.7 | 32.7 | 32.7 | 32.7 | 32.7 |
| Bottom bracket drop (cm) | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 |
| Chainstay length (cm) | 43.5 | 43.5 | 43.5 | 43.5 | 43.5 |
| Offset (cm) | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 |
| Trail (cm) | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 |
| Wheelbase (cm) | 111.3 | 113.8 | 115.3 | 117.2 | 121.7 |
| Standover (cm) | 76 | 77.2 | 77.2 | 77.2 | 77.2 |
| Frame reach (cm) | 41 | 43.5 | 45 | 46.5 | 50 |
| Frame stack (cm) | 59 | 59 | 59 | 59.9 | 62.2 |
| Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| Small | 155 – 165 cm | 5'1" – 5'5" |
| Medium | 165 – 177 cm | 5'5" – 5'10" |
| Medium/Large | 173 – 180 cm | 5'8" – 5'11" |
| Large | 177 – 188 cm | 5'10" – 6'2" |
| X-Large | 188 – 195 cm | 6'2" – 6'5" |
Specs
| Frame | SLR OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel |
|---|---|
| Fork | RockShox SID SL Ultimate, DebonAir spring, Charger Race Day damper, dual remote lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 110mm travel |
| Rear Shock | Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper |
| Wheels |
Front: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' Rear: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6 bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 29'' |
| Tires |
Front: Pirelli Scorpion XC, Tubeless Ready, Team Edition Pro Wall, aramid bead, 120 tpi, 29x2.20'' Rear: Maxxis Aspen, Tubeless Ready, EXO casing, folding bead, 29x2.4'' |
| Brakes | SRAM Motive Silver 4-piston hydraulic disc |
| Crankset |
Size: S, M, ML SRAM X0 Eagle, power meter, DUB, 34T, T-Type, 55mm chainline, 170mm length Size: L, XL SRAM X0 Eagle, power meter, DUB, 34T, T-Type, 55mm chainline, 175mm length |
| Bottom Bracket | SRAM DUB, 92mm, PressFit |
| Shifters | SRAM AXS pod |
| Cassette/Freewheel | SRAM Eagle XS-1295, T-Type, 10-52, 12 speed |
| Rear Derailleur | SRAM X0 Eagle AXS, T-Type |
| Rotors | SRAM CenterLine, 6-bolt, round edge, 160/180mm |
| Headset | FSA IS-2, 1-1/8'' top, 1.5'' bottom |
| Handlebars |
Size: S, M, ML Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 70mm length Size: L Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 80mm length Size: XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 90mm length |
| Chain | SRAM X0 Eagle, T-Type, 12 speed |
| Tape/Grips | ESI Chunky |
| Seatpost |
Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length Size: M, ML, L Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length Size: XL Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length |
| Saddle | Verse Short Elite, hollow magnesium rails, 145mm width |
| Pedals | Sold Separately |
| Battery | SRAM AXS battery pack (with charger) |
* Subject to change without notice.
